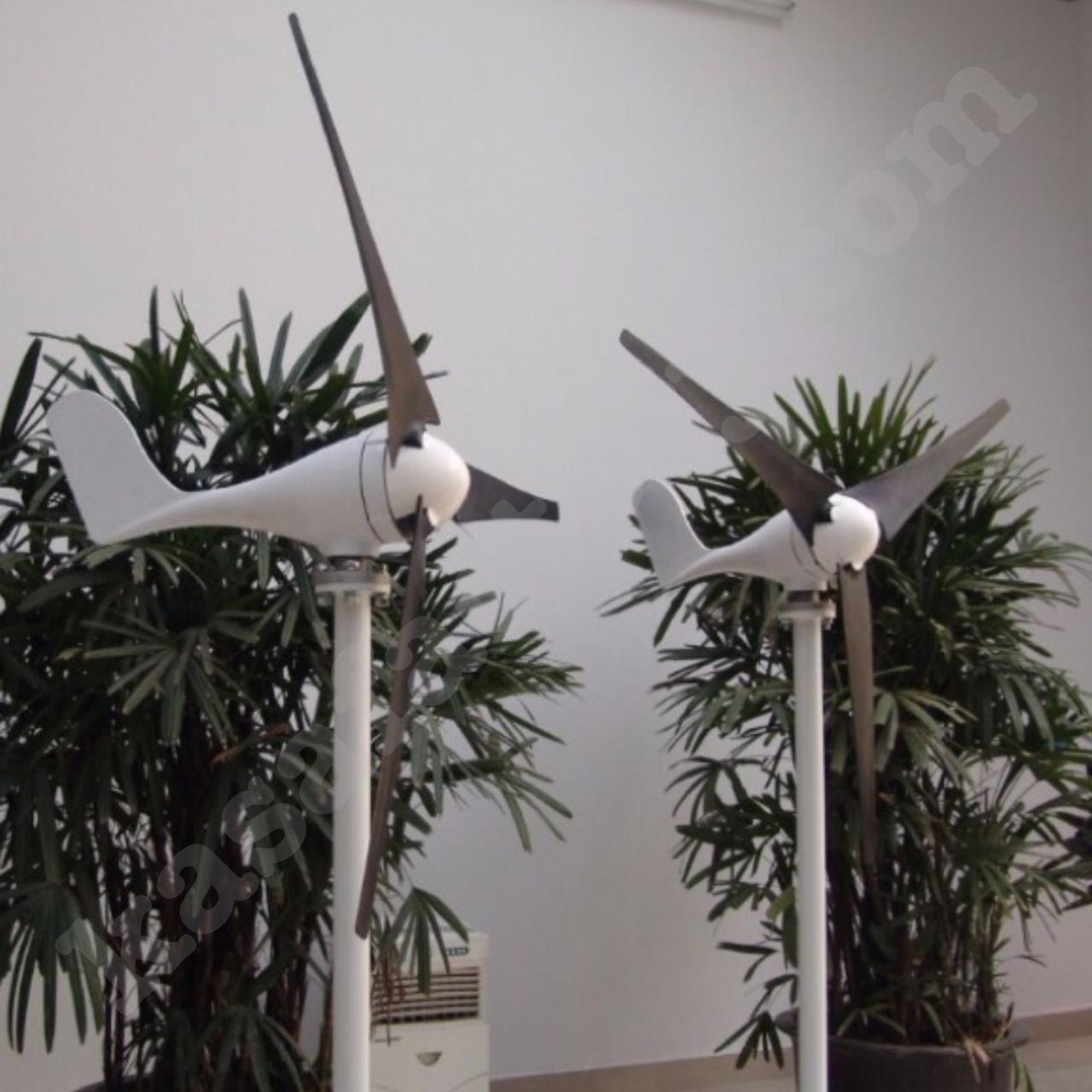

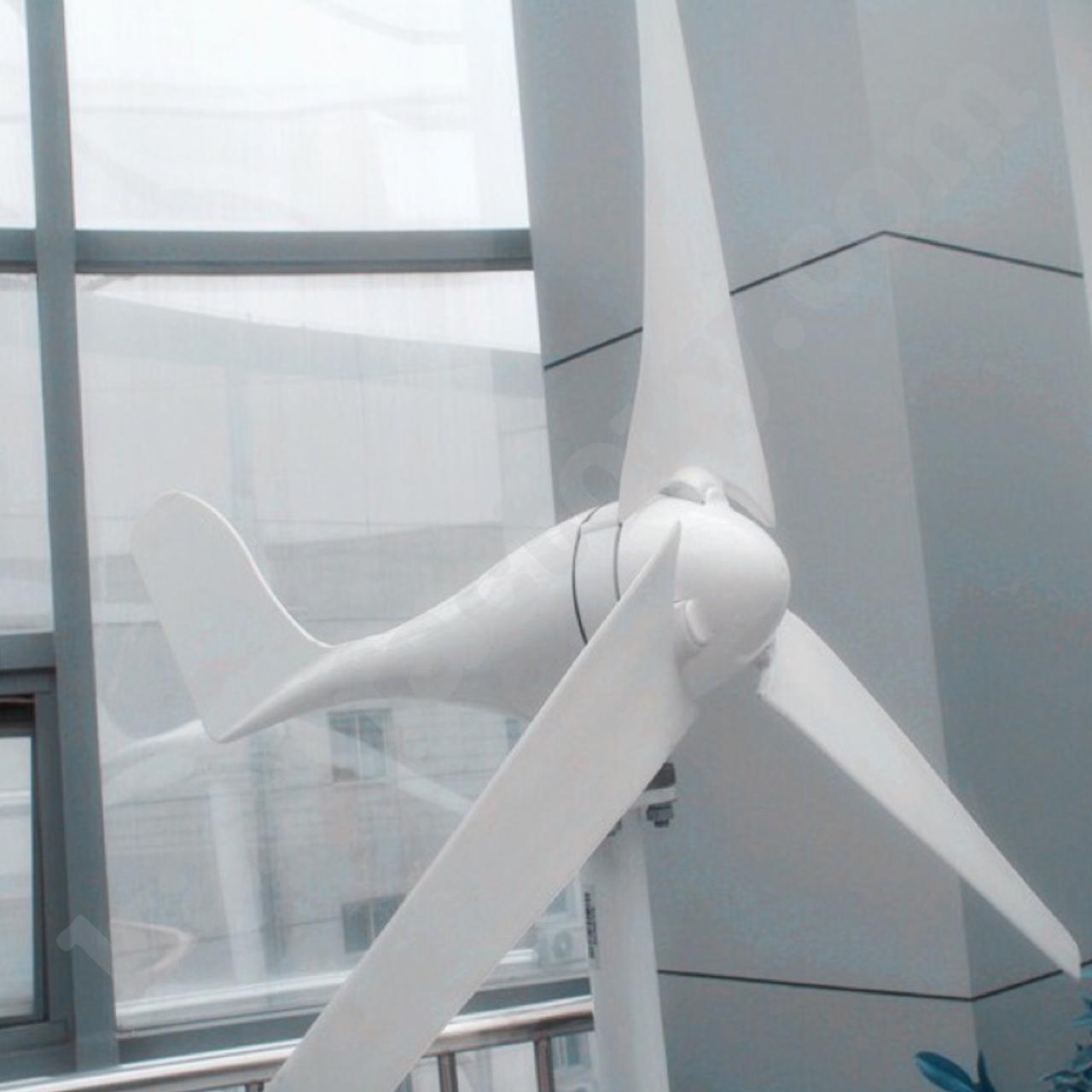

300W 24V Wind Turbine Generator 3 Blade - Digital Hybrid Wind/Solar Controller!!

Calculate Shipping

Here it is! Complete with Wind / Solar Hybrid Digital Controller - Genuine KASA Series IV Next Gen Wind Turbine Technology with patent tail axis rotation. Our wind turbines will turn facing the maximum amount of wind 100% of the time. Our unique design ensures reliable and effecting power generation guaranteed 24/7

Guaranteed to Generate Electricity Power even at the low wind speeds of 7km/hr ( similar to human walking speed ). Need to charge a 24V battery from 50AH upto 250AH - No problems as long as you have some wind!! Even if you do not have any wind our hybrid controller will allow you to connect to wind power or sun power. This means you can connect to any 12V solar panel into our hybrid controller to produce electricity even when there is no wind (as long as you connect our controller to a 24V solar panel - solar panel not provided)

Applications

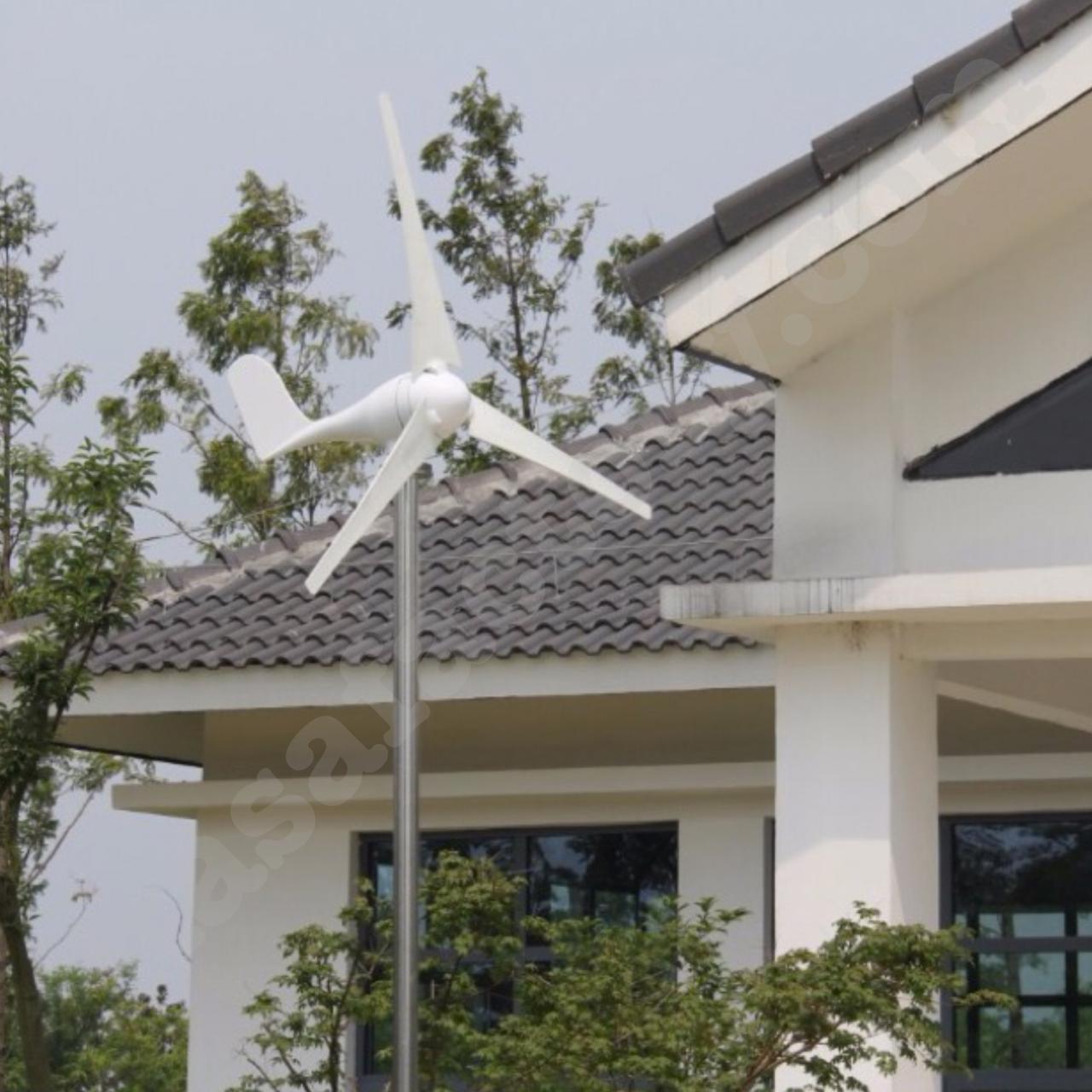

Home
Caravan
Camping
Boat
Telecommunications
Street lights

Features

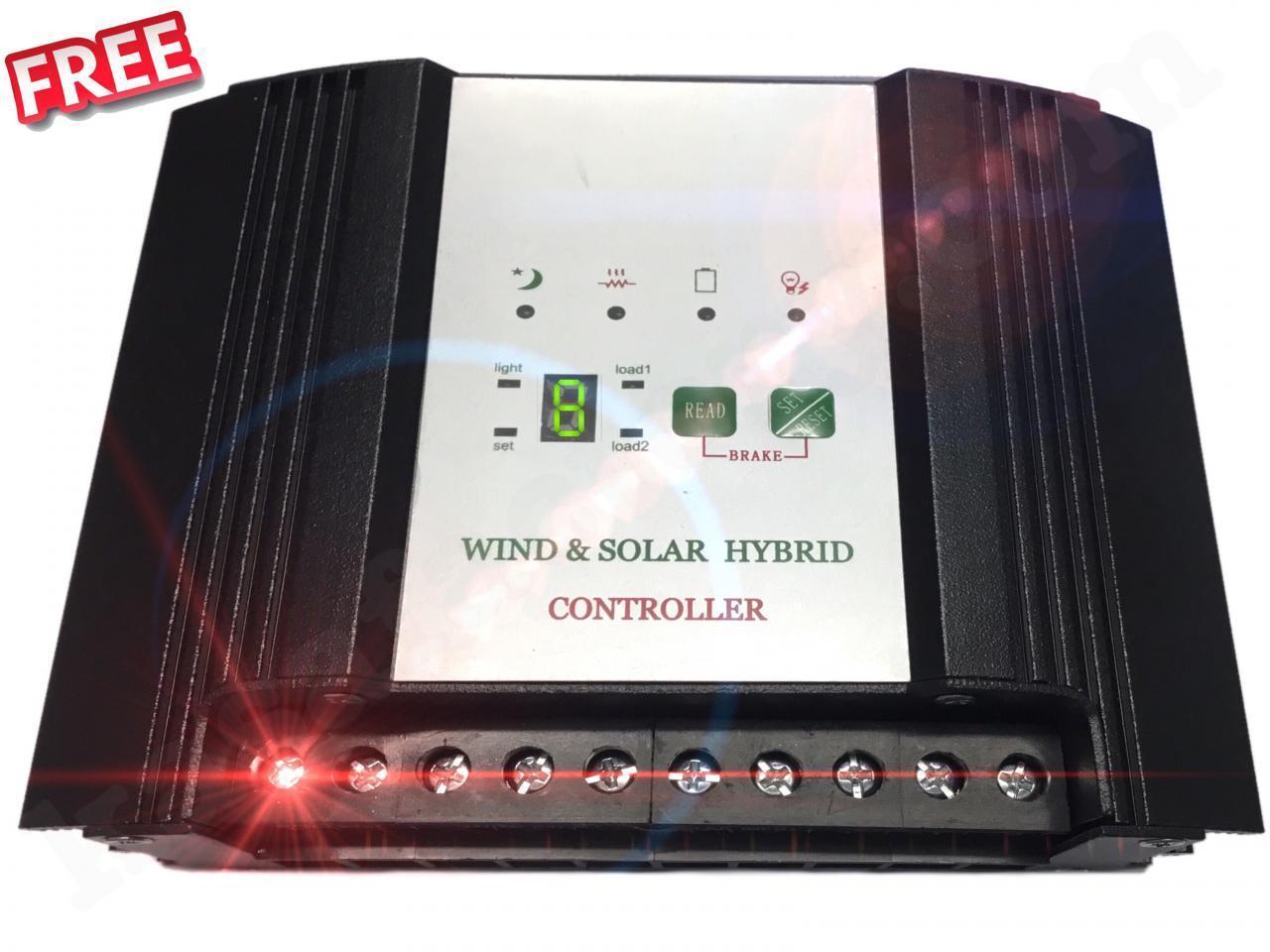

FREE Hybrid Digital Controller Supplied with built-in over load protection means you can connect a 24V solar panel as well
7 km/hr Low Start Up Speed

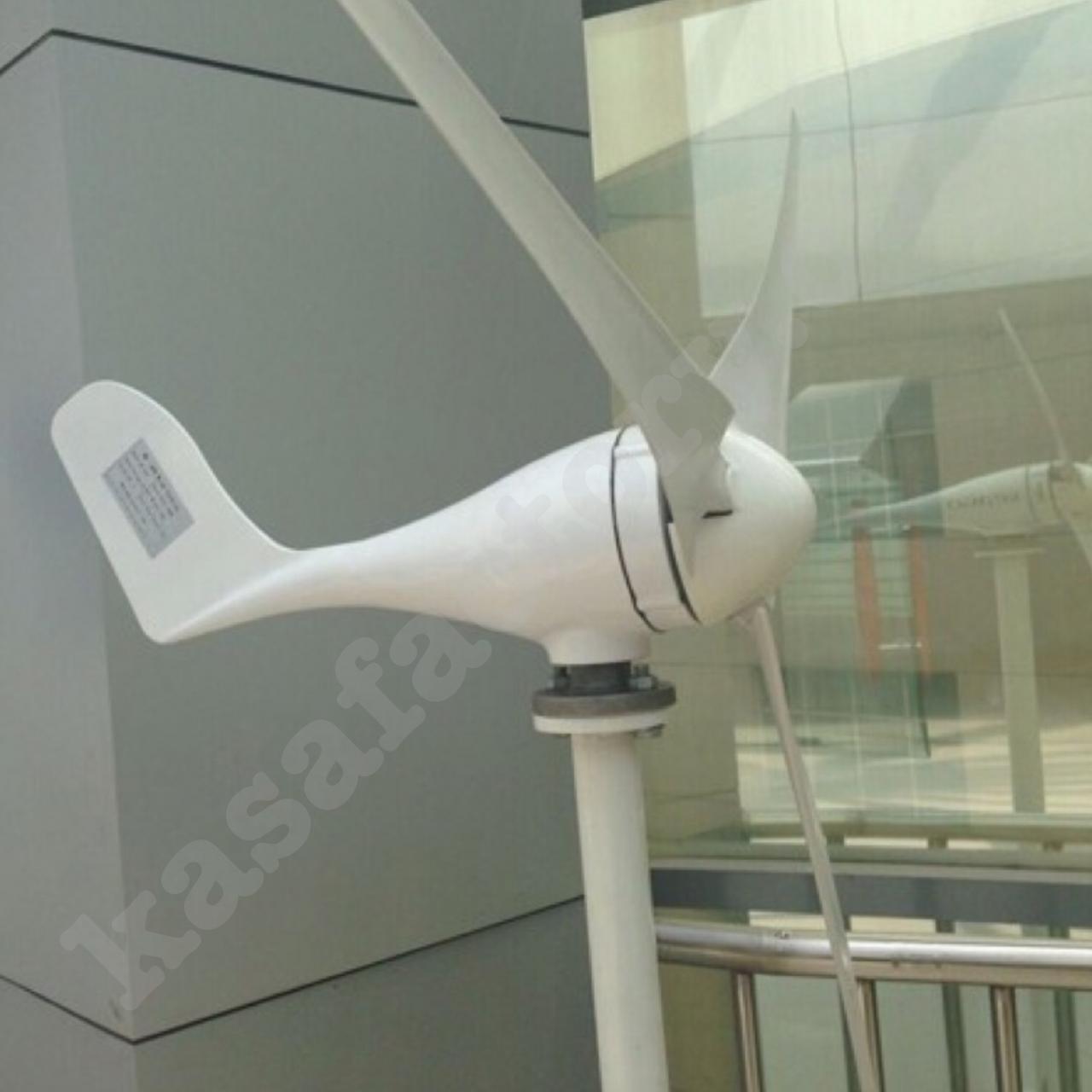

Patent Tail Axis Rotation means turbine rotates automatically
Turbine head facing the inward winds 100% of the time
Easy installation with flange fitting provided

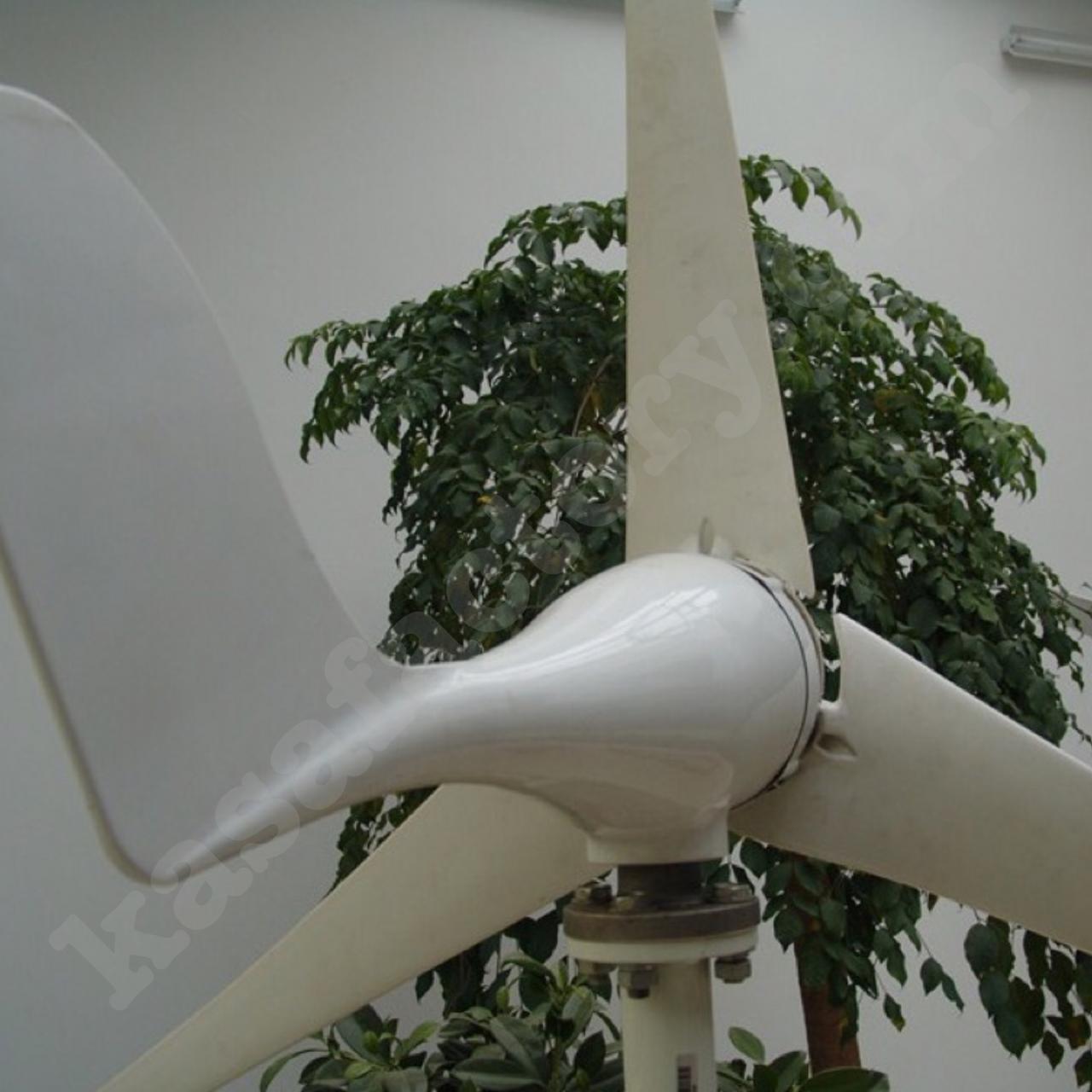

High Strength Precision Blades for maximum efficiency
Permanent Magnet AC synchronised generator
Turbine Body made from Aluminium alloy makes it strong, light and rust proof
Two heavy duty swivel bearings inside turbine
Light weight and portable

Specifications

Rated Power 300W
Maximum Power 310W
Rated Voltage 24V
Noise Rating < 60dB

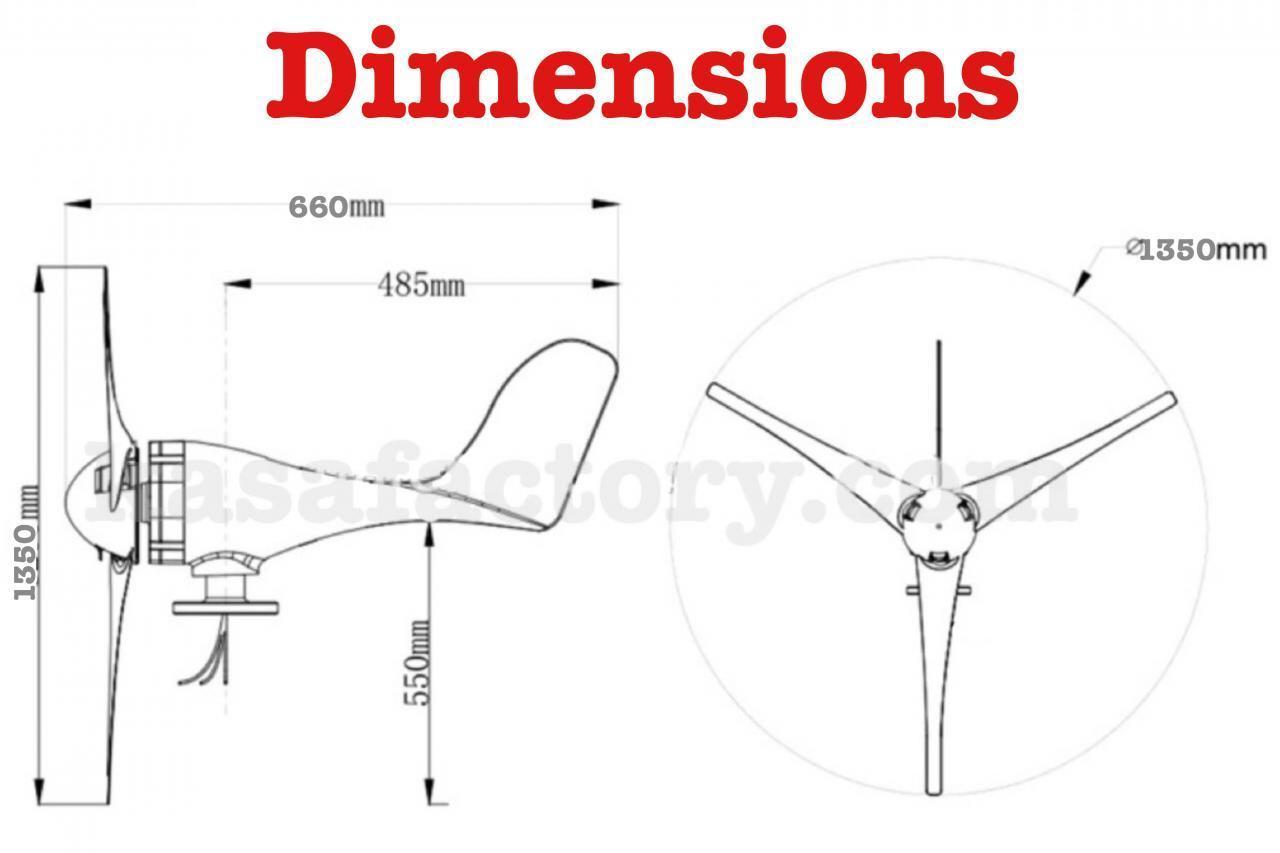

Wheel diameter 1.35m
Start up Wind Speed 7 km/hr
Rated Wind Speed 50 km/hr
Survival Wind Speed 160 km/hr
Net Weight 9.5 kg
No. of blades 3
Working temperature -40 to +80 degrees celcius
Design Life 20 years

Controller Specifications

TOTAL WIND / SOLAR (max) 400W
Wind Power (max) 300W
Solar Power (max) 100W

Simple Basics before install below-

Read Installation Manual Supplied before installing (very important if you are new to this technology)
Do not install on rainy or windy days
Connect the 3 wires from wind turbine together to fuse them and do not hand spin before final connection. The wind turbine produces electricty and should not be connecetd until controller and battery are connected first.
Connect Controller to Battery before anything else. Only after you have connected controller to battery are you allowed to connect wind turbine
Do not use wind turbine without controller / battery as electricty is produced which needs to be stored
Do not install blades upside down otherwise bolts will not fit into turbine hub (see install pictures)

Package includes

300W 24V KASA Series IV Wind Turbine
FREE Hybrid Digital Controller included means you can connect solar panel (optional)

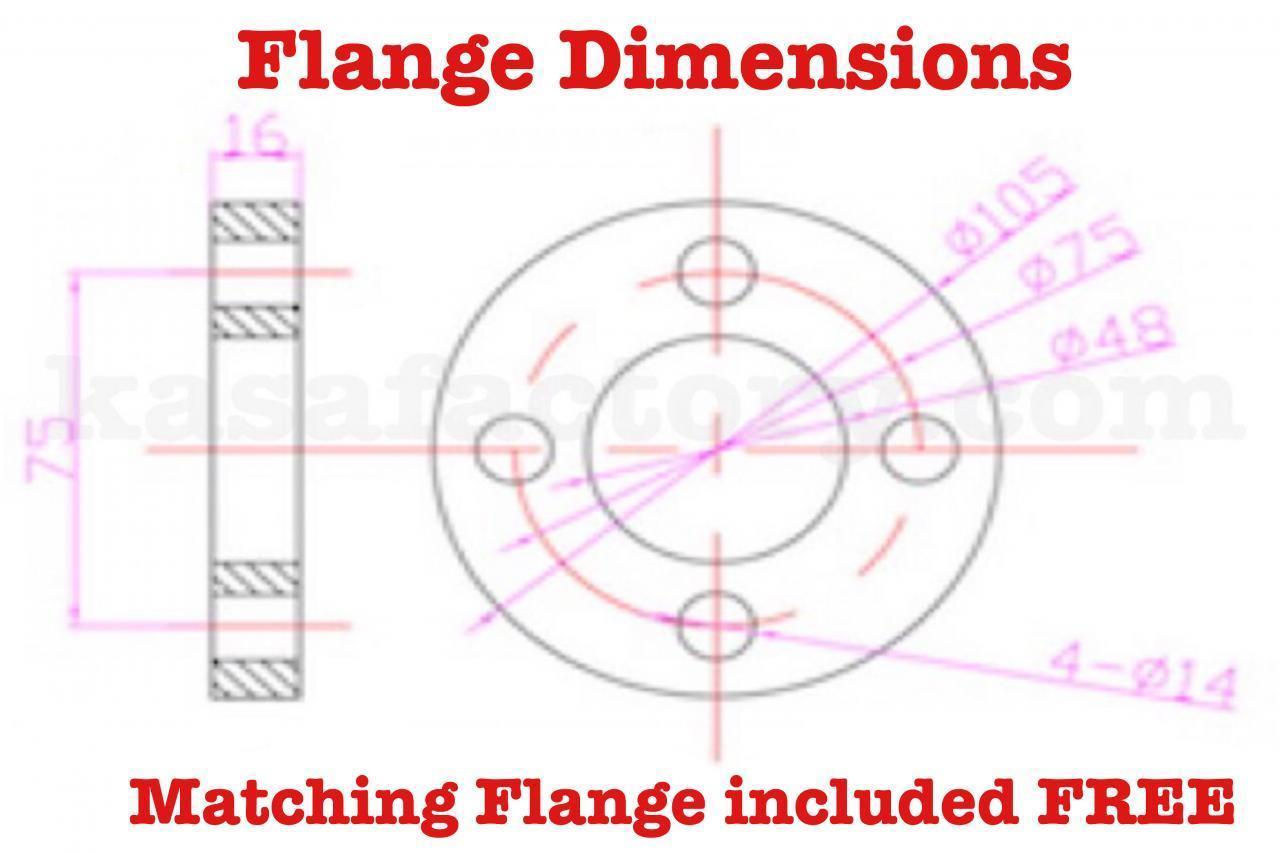

Installation Flange with bolts included
Installation and assemble manuals for both wind turbine and controller

(653-KS300WT24V)

SKU

653-KS300WT24V
