Kasa 4000w Electric Scooter Foldable 48v Motorised Portable 10" Off Road Tyre Removeable Battery T1pro Series 3 New Improved

KASA T1 PRO Scooter Series 3 is a POWERFUL 4000W Peak Power ( 3300W Nominal Power ) Electric Scooter



Comes complete with BIG 6-INCH LCD DISPLAY SCREEN, 10-inch OFF-Road Tubeless Tyres Motorized, Removeable Battery comfortable REMOVABLE SEAT plus DUAL MOTORS



It's an ADVANCED and HIGH-PERFORMANCE SCOOTER designed for off-road enthusiasts



With its POWERFUL 4000W Peak Power ( 3300W Nominal Power ) this scooter delivers exceptional acceleration and top speeds of 70-80km/h, making it perfect for conquering rough terrains



The integrated 6-inch LCD DISPLAY SCREEN provides essential real-time information like speed, battery level, and trip distance, enhancing the riding experience



The new modal include the mobile holder, USB Port, Back light, Rear left and right indicators, 2 Back Rear Shock Absorbers, And new design of wheels.



Equipped with specialized off-road features, sturdy construction, and dual motors motorized, this scooter offers increased power and traction for tackling challenging landscapes with ease



The combination of the dual motor system and off-road capabilities ensures an exhilarating and thrilling ride, providing outdoor enthusiasts with the perfect scooter to explore and enjoy off-road adventures to the fullest


Additionally, the T1 PRO Series 3 is equipped with a removable battery that can be charged outside the scooter, ensuring hassle-free use. With waterproof connectors and fuses in all wiring for extra safety, this scooter combines advanced technology and rugged design, making it the perfect choice for those looking to explore the great outdoors.



FEATURES

• Removable Seat Included: YES
• BIG 6” LCD DISPLAY SCREEN: YES
• SPEED DISPLAY: YES
• BATTERY LEVEL INDICATOR: YES
• DISTANCE TRIP DISPLAY: YES
• REAL TIME DATA DISPLAY: YES
• DISC BRAKES ( Front / Rear ): YES
• FOLDABLE: YES
• PORTABLE: YES
• Frame Lightweight Aluminium Alloy: YES
• Dual Charging Ports included: YES ( Optional 2nd Charger purchased separately )
• Disc Brakes: YES
• Dual 30A Controllers included: YES
• Front Shock Absorbers: Hydraulic
• Rear Shock Absorbers: Spring
• 2 Back Rear Shock Absorbers: YES

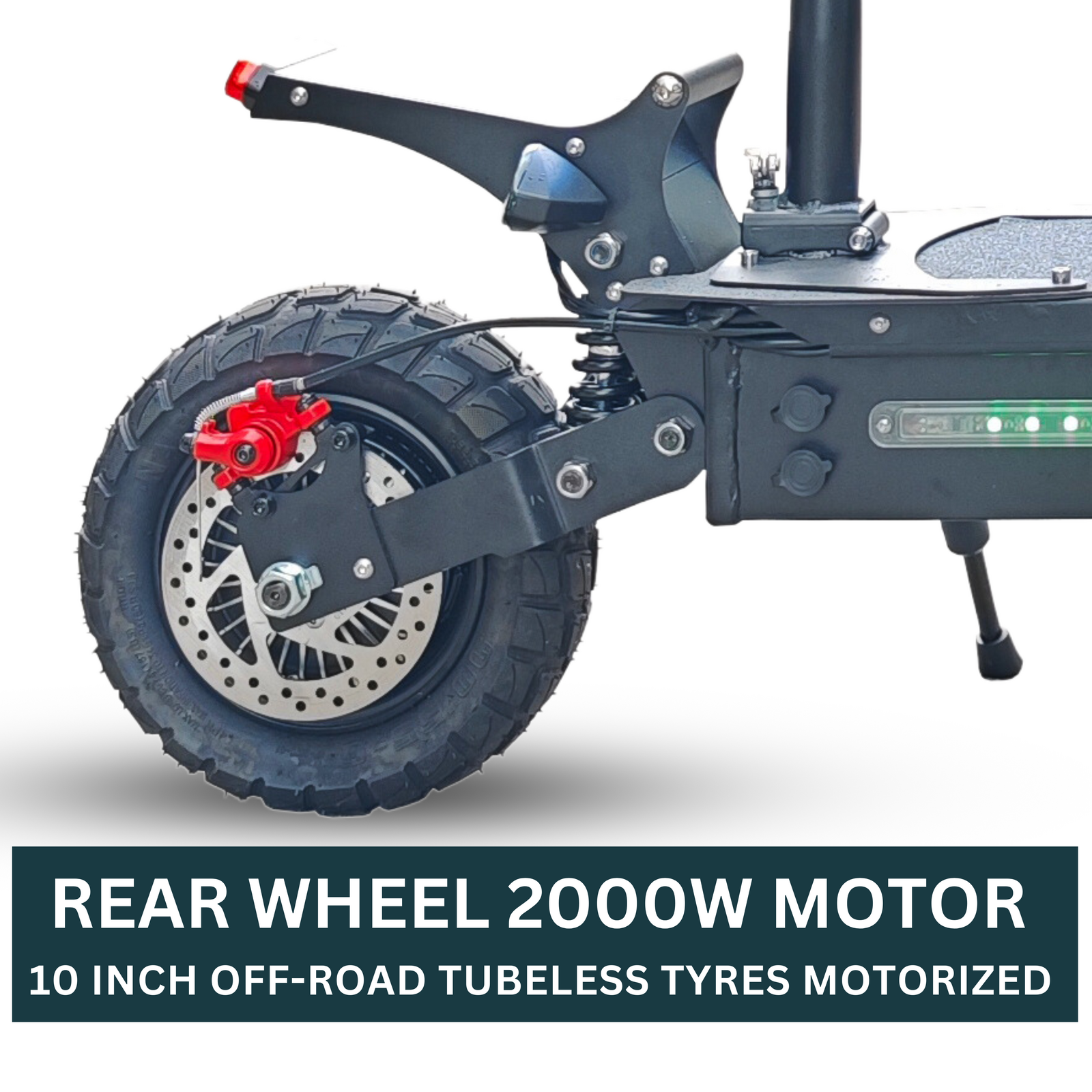

• Tyres: 10 inch Off Road Tubeless Tyres Motorized
• Mobile Holder: YES
• Usb Port: YES
• Back Light: YES
• Rear left and right indicators: YES



SPECIFICATIONS

• *SPEED: 70 - 80km/hr + on Private Property ( Limited to 25km/hr )
• * DISTANCE RANGE: 50-60km
• MOTOR POWER ( Peak ): 4,000 WATTS
• MOTOR POWER  ( Nominal ): 3,300 WATTS ( 1,650W x 2 Motors )
• 10 inch Off Road Tubeless Tyres Motorized
• Battery: 48V/21AH Lithium-ion
• Removeable Battery T1PRO Series 3
• Battery can be charged outside the scooter
• Waterproof connectors inside deck
• Fuses in all wires for extra safety

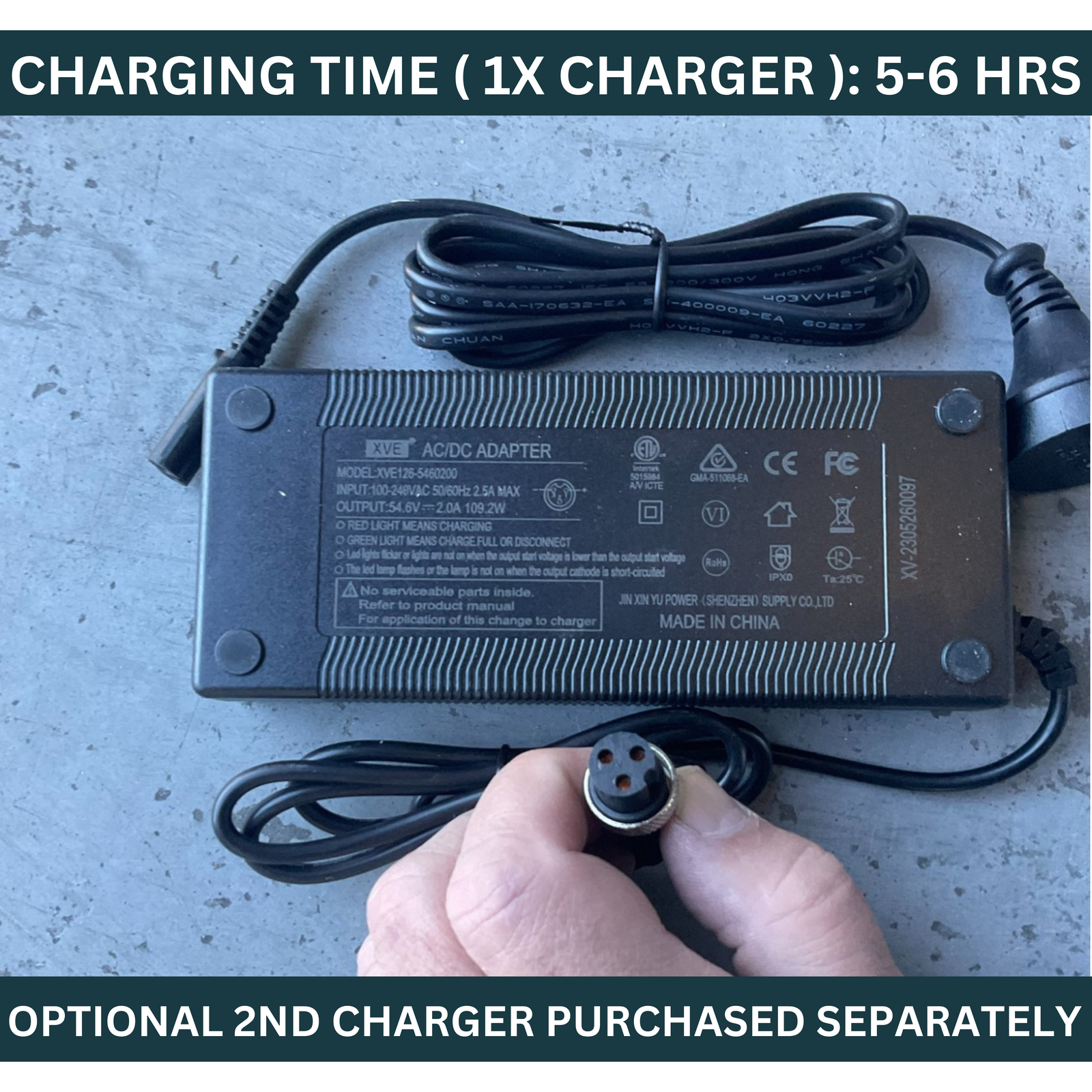

• Charging Time ( 1X Charger ): 5-6 hrs
• Charging Time ( 2X Chargers ): 3-5 hrs
• Optional 2nd Charger purchased separately
• LOAD CAPACITY: 150kg max



PRODUCT SIZE

• Unfolded size: 115*21*129CM
• Folded size: 115*21*45CM
• Pedal width: 21CM
• Packing size: 128*28*52CM
• Carton weight: 5KG
• Net Weight: 30KG
• Gross Weight: 35KG



PACKAGE CONTAINS

• 1x Electric Scooter 4000W ( 3300W Nominal Power )
• 2x 10" Off RoadTyres
• 1x 48V / 21AH Lithium Ion Battery
• 1x 6-inch LCD Display Screen
• 1x Hand Throttle Control plus display
• 1x Powerful Front Light
• 1x LCD Deck Side Lights
• 1x Horn
• 1x Mobile Holder
• 1x USB Port
• 1x Back Light
• 1x Charger with Power Cable
• 1x Tools Set
• 1x User Manual



HOW TO UNLIMIT THE SPEED  (FOR PRIVATE PROPERTY UNRESTRICTED SPEEDS OF 70-80 KM/HR )


1. Open the scooter, press and hold the two buttons on the display screen, with "P" displayed at the top.

2. Press and hold the "power on" button to reset the number in the middle to "08",

3. Long press and hold the "power on" button, and"R" appearing on the right.

4. Then, press and hold the "MODE" button below to adjust the number to "100", and then display "000".

5. Then, press and hold both buttons at the same time, release, turn off, and then turn on again



IMPORTANT NOTE

*Max speed and range are calculated under controlled factory conditions. Factors such as rider weight, terrain, hills, power mode, and heavy acceleration can greatly reduce these figures



We strongly recommend the use of safety equipment. Refer to local regulations regarding where electric scooters are permitted to be used.



The laws regarding the use of electric scooters vary between states/territories. Public use isn’t permitted in all states/territories and licensing/registration requirements may apply.



Customers should review these laws before purchasing an electric scooter. Safety equipment (including helmets and protective gear) should always be worn when using electric scooters.



We have DISCONNECTED the PLUG of the POWER PACK SUPPLY under the deck for the safety with lithium battery and SHIPPING

To make sure you get POWER running to scooter please RECONNECT the PLUG of POWER PACK to BATTERY



WARNING

1. Keep away from Children

2. Do not leave it unattended while charging

3. If you do not use it for a long time, charge it every 2 months.

4. Do not run the motor while charging

5. Do not charge in a damp place

6. Avoid contact with the material leak out of the battery accidentally

7. Failure to store or recharge in accordance with the correct method may result in damage to the battery and no charge and may void the warranty


Warning: Always unplug the charger from the wall and the battery/electric scooter when fully charged.

Warning: Do not leave the scooter on charge overnight or with no one to monitor. A damaged battery may overnight and cause a fire.



WARNING

[ 1 ]

Brand: KASA

Product name: T1 Pro

Serial number: NA

Lithium Ion Battery Certificate Approval Number:

1) Report No.: TSZ22110306-P08-R02 for Material Safety Data Sheet

2) Report No.: TSZ22030130-P01-R01 for UN38.3 Commission Test

3) Report No.: TSZ22110306-P08-R05 for Identification and Classification Report for Sea Transport of Goods

This Battery Complies with the following Standards:

1)     Report No.: TSZ22110306-P08-R02 for Material Safety Data Sheet

2)     Report No.: TSZ22030130-P01-R01 for UN38.3 Commission Test

3)     Report No.: TSZ22110306-P08-R05 for Identification and Classification Report for Sea Transport of Goods

This Scooter complies with the following standards:

1) CE International Standards

2) Import Permits under Australian standards:

             a) Advisory notice that a thing is not a road vehicle

             b) Road Vehicle Standards Rules 2019, Section 233

             c) Advisory Notice Number NARV-2025-0008086



[ 2 ]

Scooter specifications

• Maximum speed: 25km/h Limited ( 80 km/hr Unlimited on Private Property ONLY)
• Maximum Scooter Weight: 32KG
• Maximum Rider Weight 100kg


[ 3 ]

Before using this scooter, check the applicable local laws relating to your intended use of the scooter on

Roads, footpaths, shared paths, bicycle lanes and bicycle paths.

Safe riding

• Tips on how to ride in traffic, plan the safest route for your ability and use bike lanes, shared paths and quieter roads with lower speeds.



[ 4 ]


WARNING! Follow these safety instructions to reduce the risk of fire, explosion and electric shock.

1) Only use batteries and chargers supplied or recommended by the manufacturer

2) Battery Model details and number:  18650 13S4P

3) Maximum charging time this scooter should be charged for: 5-6 hrs one charger or 2-3 hrs if 2 chargers are used

4) Charge your scooter and batteries in an open area away from combustible and highly flammable materials, such as beds, sofas and carpets.
5) Store and charge your scooter and batteries in a cool, dry place away from direct sunlight.
6) Store and charge your scooter and its batteries away from doorways.
7) Allow time for batteries to cool before recharging or storing.
8) Keep batteries away from moisture, heat and impact.


WARNING! Modifying or tampering with your scooter can result in a fire, explosion or electric shock.

DON’T:

1) Modify or tamper with any component of this scooter.
2) Charge this scooter for more than the recommended charge time.
3) Leave charging batteries unattended or on charge overnight
4) Use or charge a damaged battery.
5) Use or charge this scooter if it is damaged.
6) Use batteries or scooter that are overheating or showing signs of failure, such as swelling,leaking or venting gas.
7) Buy or use a scooter or battery that has been altered or modified


[ 5 ]

Do not attempt to repair your damaged scooter, take it to a qualified repair person. For further information on service and repair of your scooter or battery please contact the manufacturer

Preferred Contact Method:

Kasa Factory



[ 6 ]

WARNING! Fires involving lithium-ion batteries can occur rapidly and can be violent, involving toxic smoke and vapours, flames, and molten projectiles.

1) If your scooter or battery emits sparks, smoke or flames, evacuate the area and call Triple Zero (000).

2) Close doors if safe to do so.



Warning signs include:

1) Pungent odours
2) Discolouration, blistering, bulging, or swelling of the casing
3) Leaking electrolyte
4) Heating up and becoming extremely hot to touch
5) Abnormal popping, hissing or crackling sounds, smoke, and fumes



Never touch a swollen or ruptured device or battery with bare hands.

Seek urgent medical assistance if anyone has been exposed to spilled electrolyte, flying debris, smoke or vapours, or flames.

Make sure you know what to do if your device or battery is smoking or on fire:
http://fire.nsw.gov.au/batteries/what-to-do



[ 7 ]

For scooter where the battery can be separated from the scooter

1) Safely separate your scooter battery for disposal by following these instructions:


How to safely separate battery

To safely handle and store lithium batteries, always store them in a cool, dry place away from direct sunlight and heat sources, and never expose them to extreme temperatures or damage. Ensure terminals are protected from short circuits, and if you encounter any signs of damage or abnormalities, discontinue use and dispose of them properly.

WARNING: Do not dispose of this scooter or components of this scooter in household or kerbside garbage bins.

When disposing of this scooter or components of this scooter, check the applicable local waste and disposal laws.

epa.nsw.gov.au/safe-battery-recycling


[ 8 ]

Other important safety information

• The battery should not be opened, destroyed or incinerate, since they may Leak or rupture and release to the environment the ingredients that they Contain in the hermetically sealed container.

• Do not short circuit terminals, or over charge the battery, forced
• Over-discharge, throw to fire.
• Do not crush or puncture the battery, or immerse in liquids.
• The battery may explode or cause burns, if disassembled, crushed or
• Exposed to fire or high temperatures. Do not short or install with incorrect polarity


[ 9 ]

Business providing this information
KASA FACTORY


[ 10 ]

Publication date of document
19/03/2018
