KASA S2000R 2000W 60V Electric Scooter Turbo LED Adults 12inch Off Road Tyre Foldable Bike

These 2000W Scooters pack a seriously powerful Brushless motor run by four 60V/12AH  battery. Maximum speed of 50-65km/hr.

A high-tensile yet lightweight steel frame houses tough polished steel shocks, massive disc brakes, and oversized knobby 12 inch off-road tyres. For those that like to tinker with their toys, you’ll love how easy it is to tweak the shocks and brakes to your riding style.

Rip it up on the 2000W Scooters in the traditional stand-up position, or take up the option of a supremely comfortable ride by locking in the spring-loaded seat. Maximum visibility is provided by high-output yet efficient LED head and tail lights.

A pull of the quick-release lever locks it into a folded position for compact storage or transport in the boot of your car. And when you’re done for the day, simply plug into the smart charger for a full charge in 4-6 hours, or even less if you just need a top up.



FEATURES:

• Powerful 2000W Deep Cycle Brushless Motor
• *(Limited to 25km/h) 50 - 65km/h + on Private Property
• Shipped fully assembled
• Front and rear suspension
• Oversized front and rear disc brakes
• Alloy Mags with 12” off-road tyre
• Folds in seconds for storage
• Efficient high-output front and rear LED lights
• High Powered Laser Night Light
• Twin 2 Off Golden Rear Shockers



SPECIFICATIONS:

• Motor: 2,000W Brushless motor
• Battery: 60V/12AH
• Tyre: 12 inch off road tyre
• Frame Material: Steel
• Front / Rear Shock Absorbers: Yes
• Foldable: Yes
• *Max Speed: 50-65 km/hr
• *Max Range: 30-50km
• Max Load: 120kg
• Charging Time: 4-6 hours
• Brake Type: Front and rear with Disc Brake
• Deck: Wooden Deck
• Weight: 60Kg



BOX INCLUDES:

• 1x Electric Scooter 2000W
• 2x 12" Tyres
• 1x Charger with Power Cable
• 1x Tools Set
• 1x User Manual

Note:

*Max speed and range are calculated under controlled factory conditions. Factors such as rider weight, terrain, hills, power mode and heavy acceleration can greatly reduce these figures. (LIMITED TO 25 KM/H) UP TO 65 KM/H ON PRIVATE PROPERTY)

BATTERY CHARGING

•  We recommend 1st charge to be 10-12 hours Before 1st use
• Insert the fuse in the fuse holder before charging
• When charging, first insert the plug into the battery of the electric scooter, and then turn on the power supply to ensure that the battery voltage is stable.
•  Before riding (after 1st charge) let the battery cool down at least 10 minutes
• The electric scooter must be charged when the power is about 20%, so as not to lose the battery.
• If not used for a long time, it should be fully charged regularly (usually 10 days).
• It should be placed in a cool and dry place for charging.
• Please do not leave unattended while charging

Important Note:

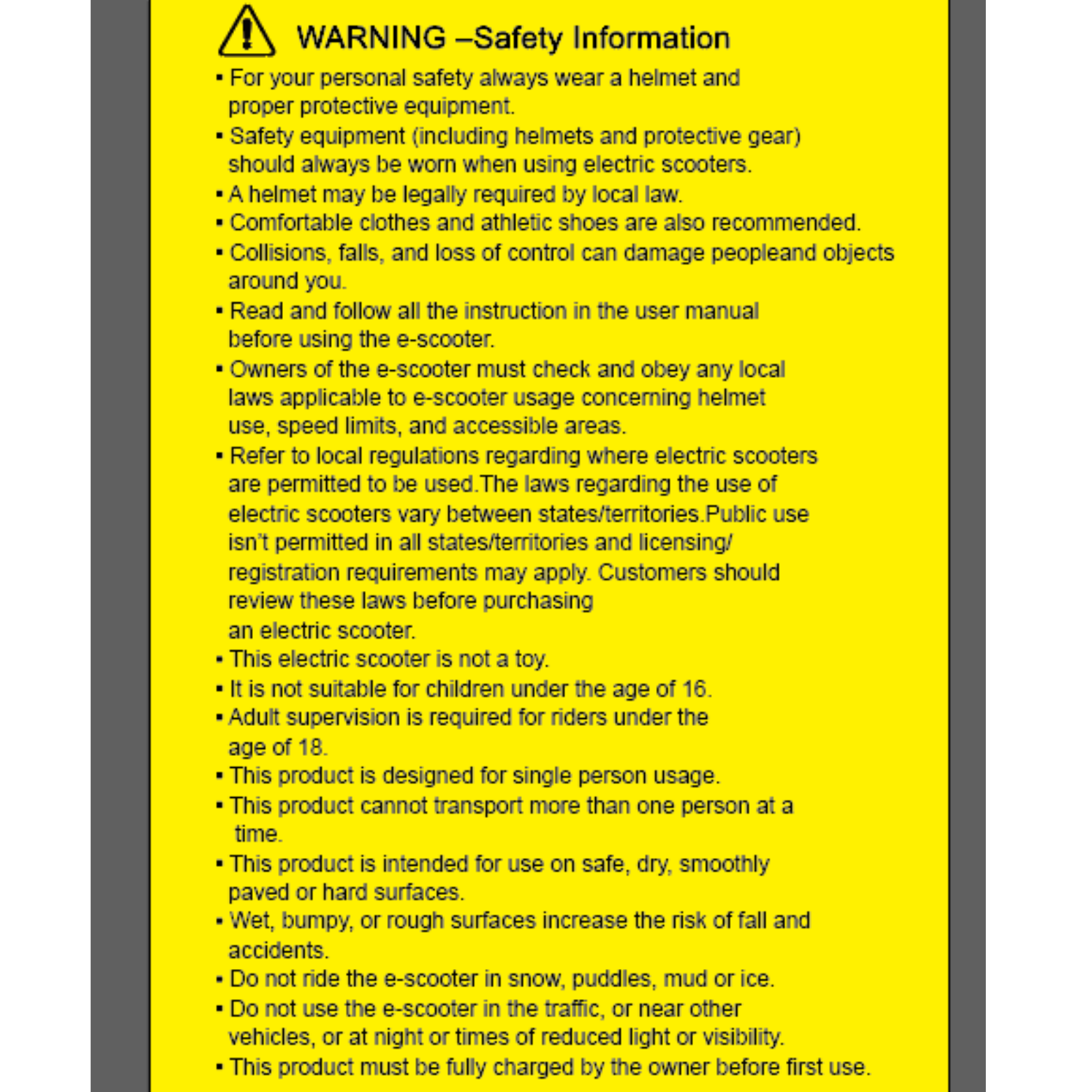

We strongly recommend the use of safety equipment. Refer to local regulations regarding where electric scooters are permitted to be used.

The laws regarding the use of electric scooters vary between states/territories. Public use isn’t permitted in all states/territories and licensing/registration requirements may apply.

Customers should review these laws before purchasing an electric scooter. Safety equipment (including helmets and protective gear) should always be worn when using electric scooters.

Warning: Always unplug the charger from the wall and the battery/electric scooter when fully charged.

Warning: Do not leave the scooter on charge overnight or with no one to monitor. A damaged battery may overnight and cause a fire.


Warning

[ 1 ]

Brand: KASA

Product name: S2000R Electric Scooter

Serial number: NA

This Scooter complies with the following standards:

1. CE International Standards

2. Import Permits under Australian standards for S2000R

             a)              Advisory notice that a thing is not a road vehicle

             b)             Road Vehicle Standards Act 2018

             c)              Advisory Notice Number NARV-2022-0002038



[ 2 ]

Scooter specifications

• Maximum speed: 25km/h Limited ( 65 km/hr Unlimited on Private Property ONLY)
• Maximum weight: 60KG


[ 3 ]

Before using this scooter, check the applicable local laws relating to your intended use of the scooter on

Roads, footpaths, shared paths, bicycle lanes and bicycle paths.

Safe riding

Tips on how to ride in traffic, plan the safest route for your ability and use bike lanes, shared paths and quieter roads with lower speeds.

[ 4 ]

WARNING! Follow these safety instructions to reduce the risk of fire, explosion and electric shock.

1) Only use batteries and chargers supplied or recommended by the manufacturer

2) Battery Model details and number:  6-DZF-12

3) Maximum charging time this scooter should be charged for: 4-6 hrs

4) Charge your scooter and batteries in an open area away from combustible and highly flammable materials, such as beds, sofas and carpets.

5) Store and charge your scooter and batteries in a cool, dry place away from direct sunlight.

6) Store and charge your scooter and its batteries away from doorways.

7) Allow time for batteries to cool before recharging or storing.

8) Keep batteries away from moisture, heat and impact.

WARNING! Modifying or tampering with your scooter can result in a fire, explosion or electric shock.

DON’T:

1) Modify or tamper with any component of this scooter.

2) Charge this scooter for more than the recommended charge time.

3) Leave charging batteries unattended or on charge overnight

4) Use or charge a damaged battery.

5) Use or charge this scooter if it is damaged.

6) Use batteries or scooter that are overheating or showing signs of failure, such as swelling,leaking or venting gas.

7) Buy or use a scooter or battery that has been altered or modified


Each consignment is accompanied with a document with an indication that:

The package contains sealed lead acid cells or batteries

The package must be handled with care, and that a flammability hazard exists if the package is damaged; special procedures should be followed in the event the package is damaged, to include inspection and repacking if necessary

Remarks
The equipment must be equipped with an effective means of preventing accidental activation.Cells have been protected so as to prevent short circuits and have been equipped with an effective means of preventing accidental activation.



[ 5 ]

Do not attempt to repair your damaged scooter, take it to a qualified repair person. For further information on service and repair of your scooter or battery please contact the manufacturer

Preferred Contact Method:

Kasa Factory



[ 6 ]

WARNING! Fires involving sealed lead acid batteries can occur rapidly and can be violent, involving toxic smoke and vapours, flames, and molten projectiles.

1) If your scooter or battery emits sparks, smoke or flames, evacuate the area and call Triple Zero (000).

2) Close doors if safe to do so.



Warning signs include:

1) Pungent odours

2) Discolouration, blistering, bulging, or swelling of the casing

3) Leaking electrolyte

4) Heating up and becoming extremely hot to touch

5) Abnormal popping, hissing or crackling sounds, smoke, and fumes



Never touch a swollen or ruptured device or battery with bare hands.

Seek urgent medical assistance if anyone has been exposed to spilled electrolyte, flying debris, smoke or vapours, or flames.

Make sure you know what to do if your device or battery is smoking or on fire:

http://fire.nsw.gov.au/batteries/what-to-do



[ 7 ]

For scooter where the battery can be separated from the scooter

1) Safely separate your scooter battery for disposal by following these instructions:

How to safely separate battery

To safely handle and store sealed lead acid batteries, always store them in a cool, dry place away from direct sunlight and heat sources, and never expose them to extreme temperatures or damage. Ensure terminals are protected from short circuits, and if you encounter any signs of damage or abnormalities, discontinue use and dispose of them properly.

WARNING: Do not dispose of this scooter or components of this scooter in household or kerbside garbage bins.

When disposing of this scooter or components of this scooter, check the applicable local waste and disposal laws.

epa.nsw.gov.au/safe-battery-recycling



[ 8 ]

Other important safety information

• The battery should not be opened, destroyed or incinerate, since they may Leak or rupture and release to the environment the ingredients that they Contain in the hermetically sealed container.
• Do not short circuit terminals, or over charge the battery, forced
• Over-discharge, throw to fire.
• Do not crush or puncture the battery, or immerse in liquids.
• The battery may explode or cause burns, if disassembled, crushed

Exposed to fire or high temperatures. Do not short or install with incorrect polarity


[ 9 ]


[ 9.1 ]

Hazards identification

The battery has passed the vibration test, pressure differential test and leakage test at 55 oc according to Recommendations on the TRANSPORT OF DANGEROUS GOODS Model SPECIAL PROVISION 238. It is not restricted to IATA DGR according to special provision A67 and is not restricted to IMDG CODE according to special provision 238.

Lead/Lead oxides: Under normal conditions of use, lead dust, vapors, and fumes are notgenerated. Hazardous exposure may occur when product is overheated, oxidized or otherwise processed ordamaged to create dust, vapor or fumes.

Inhalation: Lead dust or fumes may cause irritation of upper respiratory tract orlungs.

Skin Contact: Lead Compounds are not readily absorbed through the skin.

Eye Contact: Lead Compounds may cause eye irritation

Sulfuric acid: Under normal conditions of use, it will not be affected. When the battery is opened and leaks, dangerous contact may occur.

Inhalation: Acid mist may irritate the upper respiratory tract or lungs.

Skin contact: Sulfuric acid can corrode the skin.

Eye contact: Sulfuric acid can cause eye irritation.


[ 9.2 ]

COMPOSITION / INFORMATION ON INGREDIENTS

Substance/Mixture                                                  Percent                                                               CAS No.

Lead/Lead oxides                                                      65% - 75%                                                           7439-92-1

Sulfuric Acid                                                               20% - 25%                                                           7664-93-9

Separator                                                                    1.5% - 2.5%                                                         65997-17-3

ABS Container                                                            4% - 5.5%                                                             9003-56-9


[ 9.3 ]

FIRST AID MEASURES

Inhalation

Sulfuric Acid: Remove to fresh air immediately. Give oxygen or artificial respiration if needed. Get immediate medical attention.

Lead/Lead oxides: Remove from exposure, gargle, wash nose and lips, consult physician

Eyes contact

Sulfuric Acid: Flush with plenty of water for at least 15 minutes, hold eyelids open. Get immediate medical attention.

Lead/Lead oxides: Flush immediately with water for 15 minutes, consult a physician

Skin contact

Sulfuric Acid: Flush with large amounts of water for at least 15 minutes, remove any contaminated clothing. If irritation develops seek medical attention.

Lead/Lead oxides: Wash with soap and water.

Ingestion

Sulfuric Acid: Ingestion: Do not induce vomiting. Dilute by giving large quantities of water. If available give several glasses of milk. Do not give anything by mouth to an unconscious person. Give CPR if breathing has stopped. Get immediate medical attention.

Lead/Lead oxides: Consult a physician immediately



[ 9.4 ]

FIRE FIGHTING MEASURES

Flash Point: Not Applicable

Extinguishing Media:

Use water, foam or dry powder, as appropriate to extinguish fire.

Fire Fighting Procedures:

In the event of a fire, wear full protective clothing and NIOSH-approved self-contained breathing apparatus with full-face piece operated in the pressure demand or other positive pressure mode. Fight fire from the maximumdistance. Evacuate area.

Specific Hazards:

When involved in a fire, the battery may decompose and produce irritating fumes containing metal oxides. And plastic may create toxic vapors, gases or fumes during hot operation.


[ 9.5 ]

ACCIDENTAL RELEASE MEASURES

Personal Precautions:

Wear appropriate personal protective equipment as specified in Section 8.

Environmental Precautions:

This material may be non-hazardous in ordinary use and may be discarded in accordance with applicable governmental regulations and take order with the demands of the environmental protection section.

Methods of Clean up:

Spill and leaks are unlikely because cells are contained in a sealed case. In the event of a battery rupture, prevent skin contact and collect all released material in a plastic lined metal containerto prevent spill from entering drinking water supplies or streams. Any product recovery or disposal must comply with local, state, federal, international or country Specific regulations.



[ 9.6 ]

HANDLING AND STORAGE

Handling: It can be used normally under the temperature of -20—40C. All connections should be connected accurately to avoid the possibility of a short circuit. Do not let oil and water or other contamination drop on the top of battery while working. Be sure to have logical discharge electricity and terminate voltage setting while working. Use only in the well-ventilated areas. Keep away from heat, sparks and open flames. Make available in the work area emergency shower and eyes wash. Avoid contact with skin and eyes. Use of full- length sleeves and pants; boots or work shoes are recommended for manufacturing operations.

Storage: Store in cool, dry, well-ventilated area and away from combustible materials, sources of ignition, excessive heat and direct sunlight. Do not store in sealed areas.

Warning: Not for use on children under 5 years old.



[ 9.7 ]

EXPOSURE CONTROLS AND PERSONAL PROTECTION

Respiratory Protection (Specify Type):

Provide general dilution ventilation to keep exposure to vapors as low as possible.

Ventilation:

Local Exhaust: Good general ventilation should be used. Use local exhaust ventilation as needed so that exposure limits are met.

Mechanical (General): Provide general ventilation in possessing and storage areas so that exposure limits are met.

Engineering Controls: General room ventilation is sufficient during normal use and handling. Do not install these batteries in sealed, unventilated areas.

Personal Protective Equipment (In the handling the battery): Hand Protection: Rubber or neoprene gloves.

Skin and Body Protection:Wear acid resistant boots, apron or clothing. Use decontamination facilities (eye bath, safety shower, washing facilities).

Protective Gloves: Rubber or neoprene gloves.

Eye Protection: Safety glasses with side shields and avoid eye contact.

Other Protective Clothing or Equipment: Protective clothing is required where repeated or prolonged skin contact may occur.

Work/Hygienic Practices: Remove jewelry, rings, watches and any other metallic objects while working on batteries. All tools should insulate to avoid the possibility of shorting connections. DO NOT lay tools on top of battery. Be sure to electricity from tools and individual person by touching a grounded surface in the vicinity of the batteries, but are heavy. Serious injury can result from improper lifting or installation. DO NOT lift, carry, install or remove pulling the terminal posts for safety reasons and because terminal posts and post seals may be damaged. DO KEEP a fire extinguisher and emergency communications the work area.



[ 9.7 ]

PHYSICAL AND CHEMICAL PROPERTIES

General Physical Form: The battery is solid.

Odor: The battery is odorless.

Solubility in Water: Lead, lead oxide and lead sulfate are insoluble in water.



[ 9.8 ]

STABILITY AND REACTIVITY

Stability: Stable under normal conditions.

Conditions to Avoid: Direct sunlight, overheat, sparks and other sources of ignition.

Incompatibility: Incompatible with strong oxidizing agents, potassium, sodium.

Hazardous Polymerization: Hazardous polymerization will not occur.



[ 9.9 ]

Lead/Lead Oxides: Toxic by ingestion or inhalation. Chronic poison.

Sulfuric Acid: Contact may cause severe irritation to eyes and skin, causes burns.

Potential Chronic Health Effects:

Be slightly hazardous in case of skin contact (permeate).

CARCINOGENIC EFFECTS: Lead/Lead Oxides:Classified A3 (Proven for animal.) by ACGIH, 2B (Possible for human.) by IARC. Sulfuric Acid:G1 by IARC.

MUTAGENIC EFFECTS: Not available.

TERATOGENIC EFFECTS: Notavailable. DEVELOPMENTAL TOXICITY: Not available.

Lead may be toxic to blood, kidneys, central nervous system (CNS).

Repeated or prolonged exposure to the substance can produce target organs damage.



[ 9.10 ]

ECOLOGICAL INFORMATION

Lead/Lead Oxides:

Eco-toxicity: Not available. BOD5 and COD: No available.

Products of Biodegradation: Possibly hazardous short-term degradation products are not likely. However, long-term degradation products may arise.

Toxicity of the Products of Biodegradation: The products of degradation are less toxic than the product itself.

Special Remarks on the Products of Biodegradation: Not available.

Sulfuric Acid:

Harmful to the environment, can cause pollution to water bodies and soil. Biodegradability and Non- biodegradability : No available.



[ 9.11 ]

DISPOSAL CONSIDERATIONS

Waste Disposal Method:

Spent batteries must be treated as hazardous waste and disposed of according to local state, and federal regulations. A copy of this material safety data must be supplied to any scrap dealer or secondary smelter withbattery. Put into dustbin, otherwise incineration, otherwise licensed landfill, or safe disposal as required by local, state, federal, international or country specific regulations.

Empty Container Warnings:

Empty containers may contain product residue, follow MSDS and label warnings even after they have been emptied.



[ 9.12 ]

TRANSPORT INFORMATION

UN number: UN2800,CLASS 8

It is not restricted to IATA DGR according to special provision A67 and is not restricted to IMDG CODE according to special provision 238.

GOUND:

• Our non-spillable lead acid batteries meet all of the following requirements found at DOT 49 CFR 173.159(d)
• When offered for transport, the batteries are protected against short circuits and securely packaged as required by DOT 49 CFR 173.159(d) (1);
• The batteries and outer packaging are marked with the words "NONSPILLABLE" or " NONSPILLABLE BATTER" as required by DOT 49 CFR173.159(d) (2);
• The batteries comply with the vibration and pressure differential tests found in DOT 49 CFR 173.159(d) (3).

AIRCRAFT-ICAO-IATA:

Our non- spillable lead acid batteries also are excepted from the international hazardous materials (also known as dangerous goods ) regulations since they comply with the following requirements:

• According to the requirements of Packing Instruction 806 in IATA(lnternational Air Transport Association ) and ICAO ( International Civil Aviation Organization ), there should not be any electrolyte leakage after the vibration and pressure differential tests .
• And, Special Provision A67 states Non-spillable batteries are not subject to these Instructions ( Packing Instruction 806 ) if at the temperature of 55C (1310 F), the electrolyte will not flow from a ruptured or cracked case and there is no free liquid flow and if, when packaged for transport the batteries are protected from short circuit and unintentional activation

VESSEL IMO-IMDG:

Our non-spillable batteries are excepted from the international hazardous materials (also known as dangerous goods) regulations since they conform to the requirements of IMDG Code Special Provision 238, that is the batteries have passed the vibration and pressure differential performance tests, and at a temperature Of 55 C , the electrolyte will not flow from a ruptured or cracked case and there is no free liquid flow and if, when package for transport, the terminal are protected from short circuit.

OTHER INFORMATION

The above information is believed to be correct but does not purport to be all inclusive and shall be used only as a guide. RJS Standard Testing & Certification Center shall not be held liable for any damage resulting from handling or from contact with the above product. See reverse side of invoice or packing slip for additional terms and conditions of sale. License granted to make unlimited paper copies for internal use only.



[ 10 ]

Business providing this information

KASA FACTORY


[ 11 ]

Publication date of document

21/01/2021
